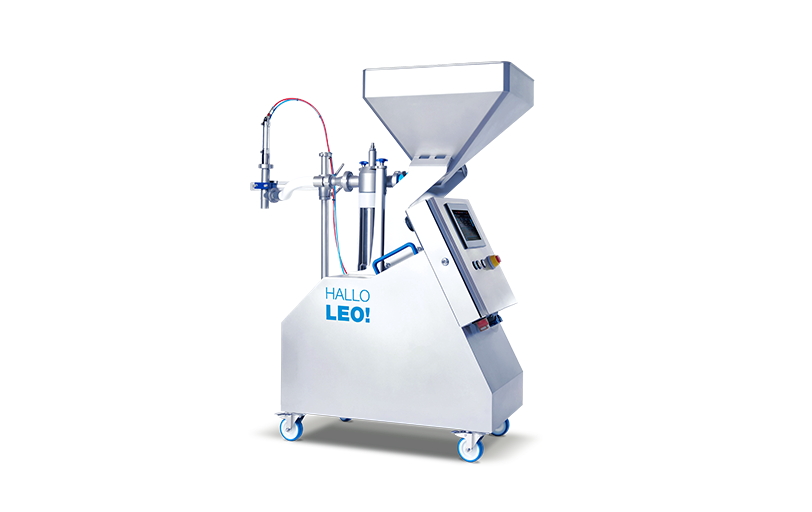

LEO is designed for all types of homogeneous, pumpable food recipes and meets the highest standards of hygiene, dosing accuracy, speed, gentle product handling, and ease of use.
Its compact, modular construction and robust design ensure long-term reliability. LEO features a new 10“ HMI touch control panel for intuitive operation and enhanced safety through multi-level access profiles.
The fully integrated servo technology of LEO forms the basis for precise control of all process sequences, ensures optimal line efficiency, and enables significant reductions in energy consumption and operating costs* — delivering clear economic benefits in every sense.
Suitable for fully automated packaging lines as well as foot-switch operation, LEO delivers a significant productivity boost – even with smaller batch sizes.
* Up to 90% reduction in energy consumption compared to pneumatic piston pumps
PRODUCTS
Soups, sauces with ingredients up to 40 × 40 mm in size, and dressings, a wide variety of cooked meal recipes, pasta dishes such as mac & cheese and orzo, ready to eat delicatessen salads, meal components such as mashed potatoes, Bolognese meat sauce, mixed vegetables, jams, and sweet desserts including puddings, fruit compotes, as well as many other homogeneous and pumpable products.
DOSING RANGES
Total range: 10 – 1.960 cc per cycle and position
DN 35: 10 – 240 cc
DN 65: 80 – 825 cc
DN 100: 300 – 1.960 cc
DOSING CAPACITY
25 – 60 cycles / minute / dosing position, depending on product consistency, volume, and packaging machine.
NUMBER OF DOSING POSITIONS
1
DOSING TECHNOLOGY
Piston system with dosing cylinders / rotary valves with wide cross-sections for gentle product handling. Very easy to dismantle and clean. Dosing pistons made from stainless steel / PEEK+ with special FDA-approved seals.
DRIVES
Fully servo-driven. No pneumatic drives (except the filling head above the packs).
CONTROLS
Bosch Rexroth control system with 10“ HMI touch control panel featuring the new LEONHARDT application. Clear, intelligent operation with recipe management, analysis functions, remote access, user access levels, multilingual support, and advanced connectivity to weighers, packaging lines, and factory control systems (Industry 4.0).
MACHINE FRAME
Hygienic design with fully welded housing, IP66, mobile.
ADDITIONAL OPTIONS
Options: integrated weighing scales and interfaces for “target weight” and “trend control”, rejects systems, tray denesters, and automatic lidding systems
